GB T 701 Q235A Z275 Pre Painted Steel Coil Q235B Q235C PPGI Colour Coated Sheet

Brand Name:	RAYMOND
MOQ:	50mt
Price:	USD500-800/MT
Delivery Time:	45days
Payment Terms:	L/C, T/T, Western Union, MoneyGram, D/A, D/P

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO14000

Commodity:

Pre-painted Steel Coil

Grade:

CGCC

Zinc Coating:

60g/㎡

Top Surface:

15 - 20 Micron Polyester + 5 Micron Primer

Back Surface:

5 - 7 Micron + 5 Micron Primer.

Surface Color:

Refer To RAL

Thickness:

0.18mm

Width:

700mm

Packaging Details:

standard export packing

Supply Ability:

10000MT/ month

Highlight:

Z275 Pre Painted Steel Coil

CGCC ppgi colour coated sheet

Q235C Pre Painted Steel Coil

Product Description

GB T 701 Q235A Q235B Q235C Z275 PREPAINTED COLOR COATED STEEL COILS / PAINTED STEEL COIL

PPGI (PPGL) Features:

Specification	Description	Prepainting Galvanized Steel Coil
	Thickness	0.12-2.0mm
	Width	600mm-1250mm
	Type of Substrate	Galvanized Steel / Galvalume Steel / Aluminum
	Coil Weight	2-5MT
	Painted Surface	Printing / Filmed / Matte / wrinkled
	Paint Top	15-35Microns
	Paint Back	5-35Microns
	Top Painted: PVDF / HDP / SMP / PE / PU
	Primer Painted:Polyurethane / Epoxy / PE
Coating Type	Back painted: Epoxy / Modified Polyester

COMMODITY:		PRE-PAINTED ZINC STEEL SHEET	Contract NO.		HYEXP2010-07-10A				Date:	SEPTEMBER-17-2010
Steel Grade:		ACC JIS G3312, SOFT MATT	Condition of Supply		PRE-PAINTED ZINC STEEL SHEET				Certificate NO.	100710A
No.	Heat No.	Size(mm)	Zinc Coating:	Color side A	Coat property					Steel property
					Pain thick (μm)	T-Bend (T)	Impact (J)	Gloss (GU)	Pencil hard	YS. Re Mpa	UTS. Rm Mpa	EL. A %



1	0710225	0.30X800 MM RAL5012	Z-60	RAL 5012/25 microns	25	3	9	50	3H	360	380	35
2	0710296	0.30X800 MM RAL8004	Z-60	RAL 8004/25 microns	25	3	9	55	3H	365	373	37
3	0710246	0.25X800 MM RAL5012	Z-60	RAL 5012/25 microns	25	3	9	50	3H	358	375	36
4	0710288	0.25X800 MM RAL8004	Z-60	RAL 8004/25 microns	25	3	9	55	3H	355	368	36

Product advantage:

1. Non-pollution

2. Weatherability

3. Corrosion resistance

4. Long service life

Application:

1. Construction:roof for steel structure workshop,airport,storeroom

2. Shipbuilding industry

3. Vehicle manufacturing

4. Furniture industry

5. Electric industry etc.

Product Picture

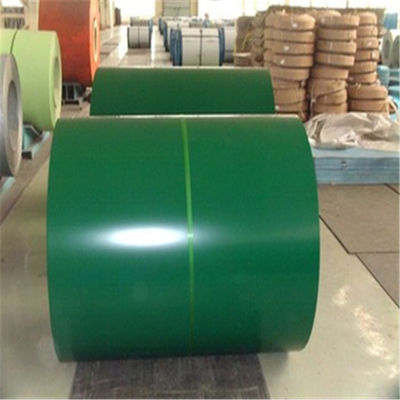

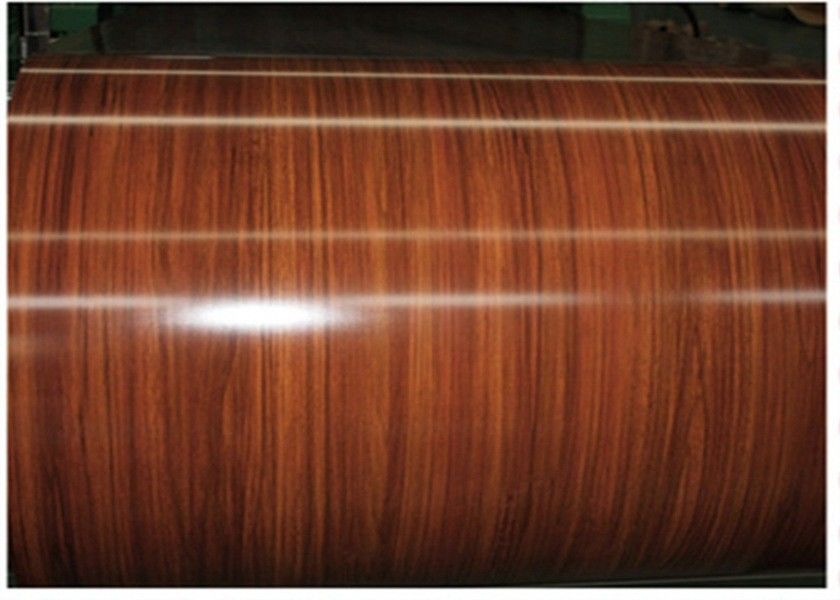

GB T 701 Q235A Z275 Pre Painted Steel Coil Q235B Q235C PPGI Colour Coated Sheet 1
