Ral 2169 Z60 90ga Pre Painted Steel Sheet Gi Colour Coated Sheet

Ral 2169 Z60 90ga Pre Painted Steel Sheet Gi Colour Coated Sheet

1. Product Overview

PPGI sheet is used where a galvanized steel base and a finished color surface are both required in one material. This page is positioned around a featured building-use configuration with CGCC substrate, Z60 metallic coating, PVDF paint, 0.5mm thickness, and 1250mm width.

The product is suitable for roofing panels, wall sheets, and decorative building components where appearance, corrosion resistance, and fabrication compatibility need to be considered together. The page also shows that this product family can cover patterned and special-surface coated sheet applications.

2. Technical Solution

The featured configuration uses GI base material with 60g/㎡ zinc coating and PVDF paint. In practical use, service performance depends on the combined effect of metallic coating level, paint system, forming route, and exposure environment.

The product description also shows broader family options including GI, GL/AZ, EG, and CR base materials, with metallic coating options from Z30 to Z275 or AZ30 to AZ150. Organic coating thickness is listed as 20–45 micro according to requirement, and paint systems include PE, PVDF, SMP, and HDP. For visible exterior use, paint type and metallic coating level should be selected together rather than as separate appearance choices.

3. Specifications

4. Application

• This material is suitable for building panels, roofing sheets, wall cladding, and decorative construction sheet applications.
• It can also be used in home appliances, furniture, and decoration according to the broader product family shown on the page.
• For building use, the product is more suitable where the required surface appearance and corrosion protection target are confirmed together with the forming route.

5. Processing

• The sheet can be supplied for cutting, bending, roll forming, and general panel fabrication.
• Optional protective film can be added when the visible surface needs better scratch control during transport, storage, or installation.
• When special surfaces such as wrinkled, textured, matt, metallic effect, or embossed finish are required, fabrication and handling conditions should be controlled more carefully to protect the final appearance.

6. Advantages

• The featured 0.5mm and 1250mm configuration is practical for building panel fabrication.
• Z60 metallic coating provides a basic corrosion protection level for painted galvanized sheet use.
• PVDF paint is suitable where stronger UV resistance and longer finish retention are required.
• The broader product family includes multiple grades, metallic coating levels, paint systems, and special surfaces, which helps match different building and decorative requirements.
• Patterned and textured surface options support appearance-focused applications beyond standard flat color sheet.

7. How to Choose

• Choose CGCC with GI base when the project requires standard galvanized prepainted sheet for building use.
• Choose PVDF when longer exterior finish stability and stronger UV resistance are more important than standard economy coating routes.
• Choose the metallic coating level according to the service environment. For more demanding exposure, a higher listed coating range may be more suitable than the featured Z60 level.
• Choose standard flat color when fabrication simplicity is important. Choose wrinkled, textured, embossed, or pattern finish when the project is more appearance-focused.
• Choose width and thickness according to panel rigidity, profile design, and downstream forming equipment.

8. FAQ

Q1. What is the featured specification on this page
The featured specification is CGCC GI PPGI sheet with PVDF paint, 60g/㎡ zinc coating, 0.5mm thickness, and 1250mm width.

Q2. Is this product only available in PVDF
The featured page highlights PVDF, but the broader product family also lists PE, SMP, and HDP.

Q3. Can the sheet be supplied in special surface finishes

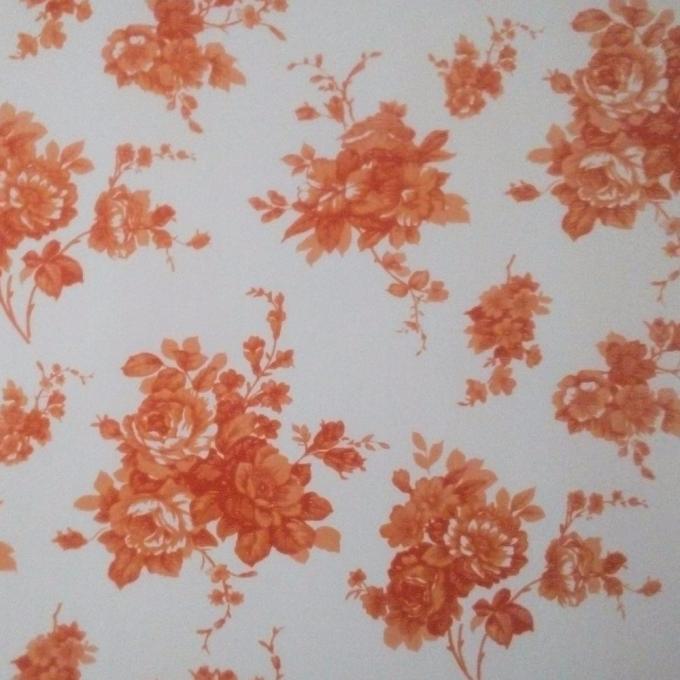

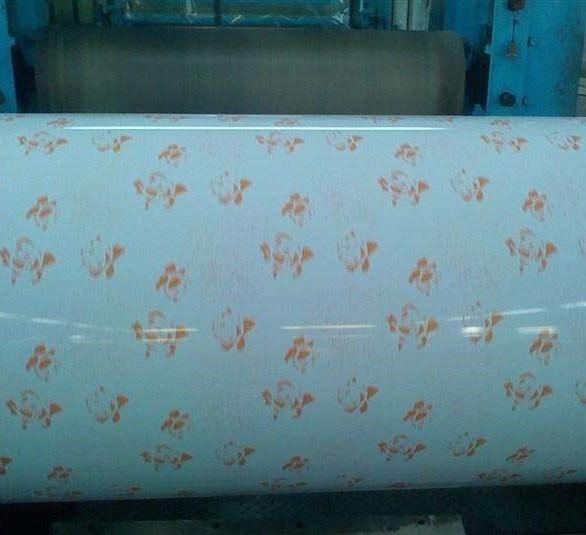

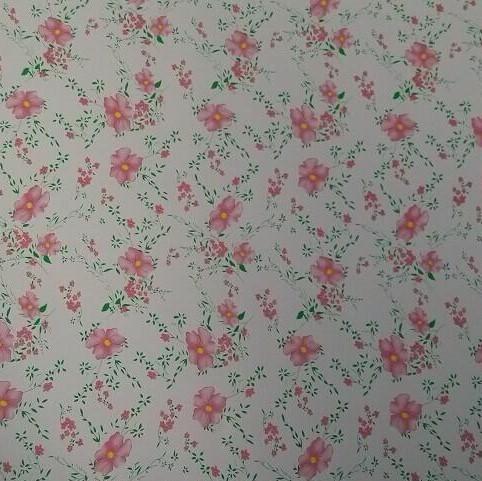

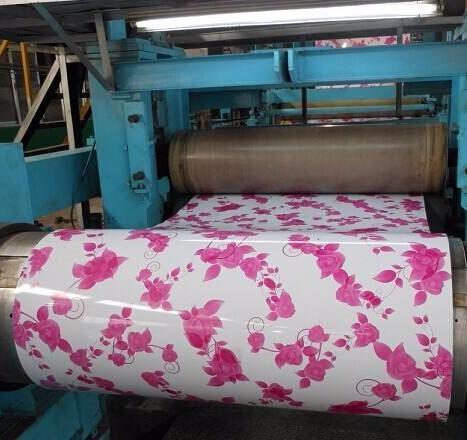

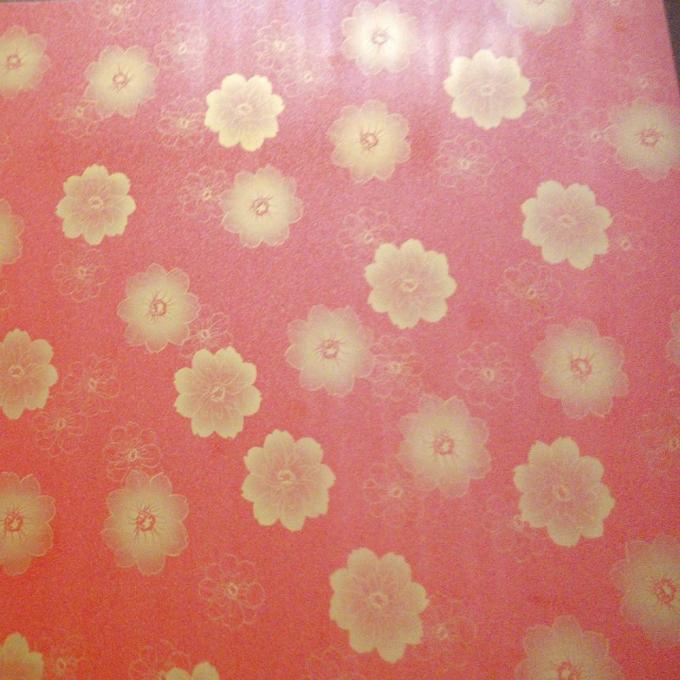

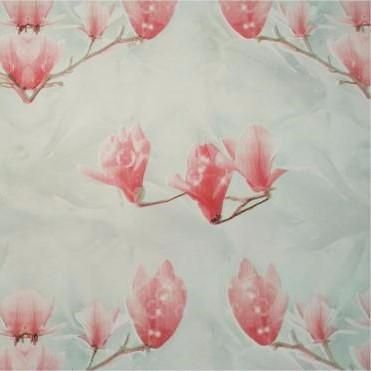

Yes. The page lists wrinkled, textured, matt, metallic effect, embossed, and patterned finishes.

Q4. What metallic coating options are listed
The page shows a featured Z60 value and broader listed coating ranges of Z30–Z275 or AZ30–AZ150.

Q5. Is this product suitable for building use
Yes. The page directly lists building as the featured application, and it is suitable for roofing and wall panel fabrication.
